Part 1 Product Overview

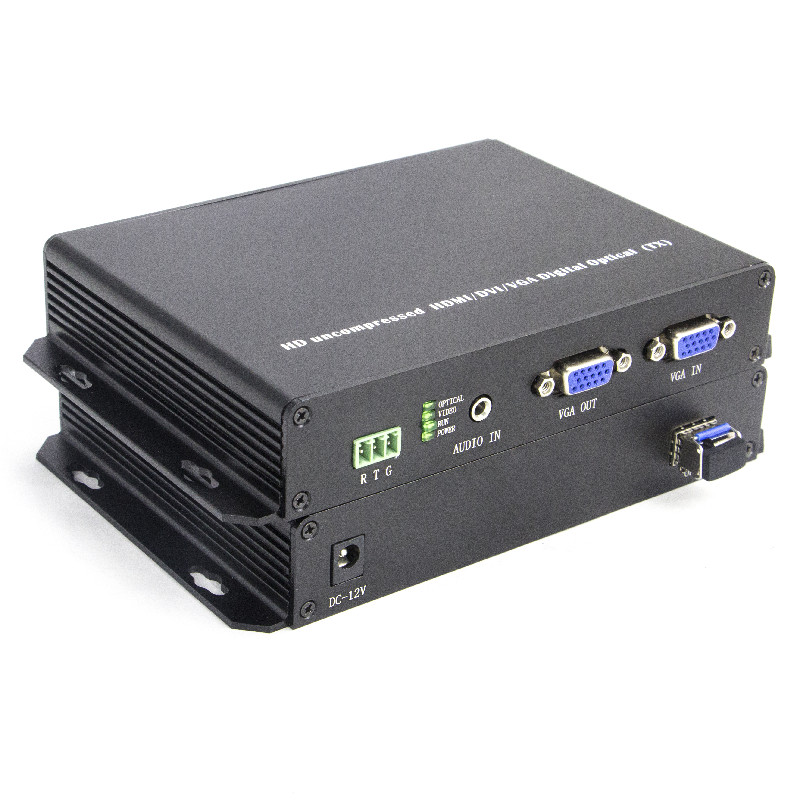

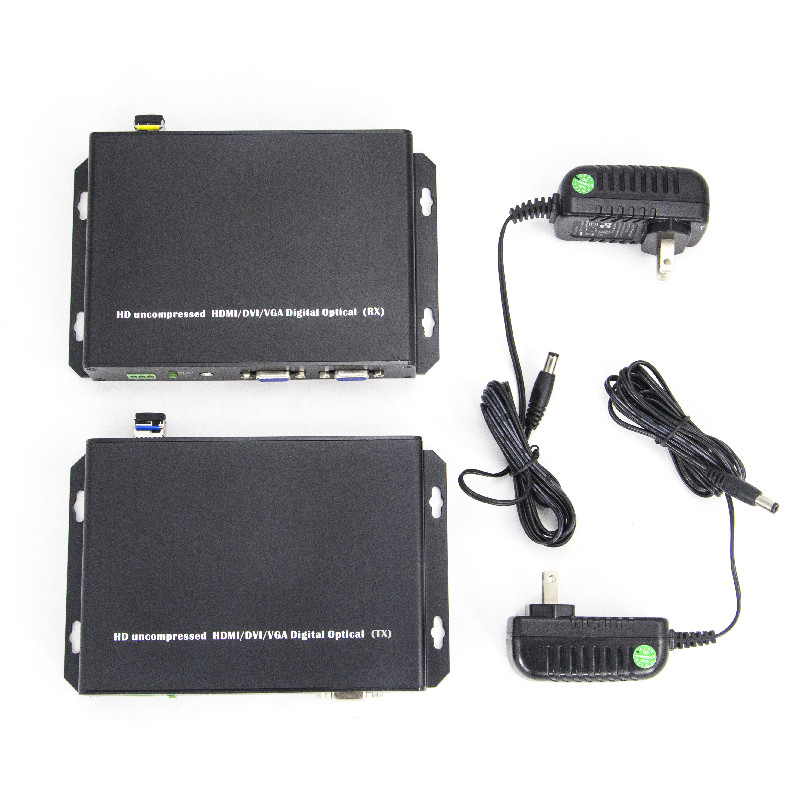

VGA Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced,It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable
Main features
l Full digital, Uncompressed HD optical fiber transmission
l Support Full HD 1920*1200@60Hz
l The attenuation of optical module SFP low to -3db
l 1 channel analog audio（3.5mm）
l Support VGA
l Support KVM
l Automatic identification and configure display mode
l Automatic equalization inside, stable and clear graphics.
l ESD protection circuit inside, to ensure the ESD damage.
l Easily to installation, plug and play, no need to set up
Part 1 Product Overview
VGA Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced,It can transfer signal source(computer signal source,VGA signal source high digital DVD/DVR) to long distance terminal easily,with strong anti-interferance performance,ensure the signal completed and stable
Main features
l Full digital, Uncompressed HD optical fiber transmission
l Support Full HD 1920*1200@60Hz
l The attenuation of optical module SFP low to -3db
l 1 channel analog audio（3.5mm）
l Support VGA
l Support KVM
l Automatic identification and configure display mode
l Automatic equalization inside, stable and clear graphics.
l ESD protection circuit inside, to ensure the ESD damage.
l Easily to installation, plug and play, no need to set up
Temperature | -20°C to +75°C | |||||||||||||
Humidity | 5 to 90 % RH (no condensation) | |||||||||||||
The signal of Input and output | VGA | |||||||||||||
Protocal | VGA | |||||||||||||
Pixel band width | 165MHz | |||||||||||||
Video format |
| |||||||||||||
The signa of Audio input and output | 3.5MM Audio | |||||||||||||
Audio format | 44.1K,48K,96K,176K,192K | |||||||||||||
RS232 port | 3 ports industrial terminal | |||||||||||||
RS232 Baud rate | Support 115200 and all below | |||||||||||||
RS 232 Data bits | 8 bits | |||||||||||||
KVM receiver port | A USB port | |||||||||||||
KVM transmitter port | B USB port | |||||||||||||
Fiber port | LC | |||||||||||||
Fiber module | SFP single mode | |||||||||||||
Fiber wavelength | 1550/1310nm | |||||||||||||
Fiber band width | 3Gbps | |||||||||||||
The Maximum transmission distance of VGA and Audio | 10KM 20KM 40KM 60KM | |||||||||||||
Input voltage | DC 12V，inside + outside - | |||||||||||||
Power consumption | VGA receiver 4W VGA transmitter 4W | |||||||||||||
Device size | 109.5*152*29.3mm(length*width*height) | |||||||||||||
Packing box size | 328*273*90mm(length*width*height) | |||||||||||||
Weight | 1500g |
